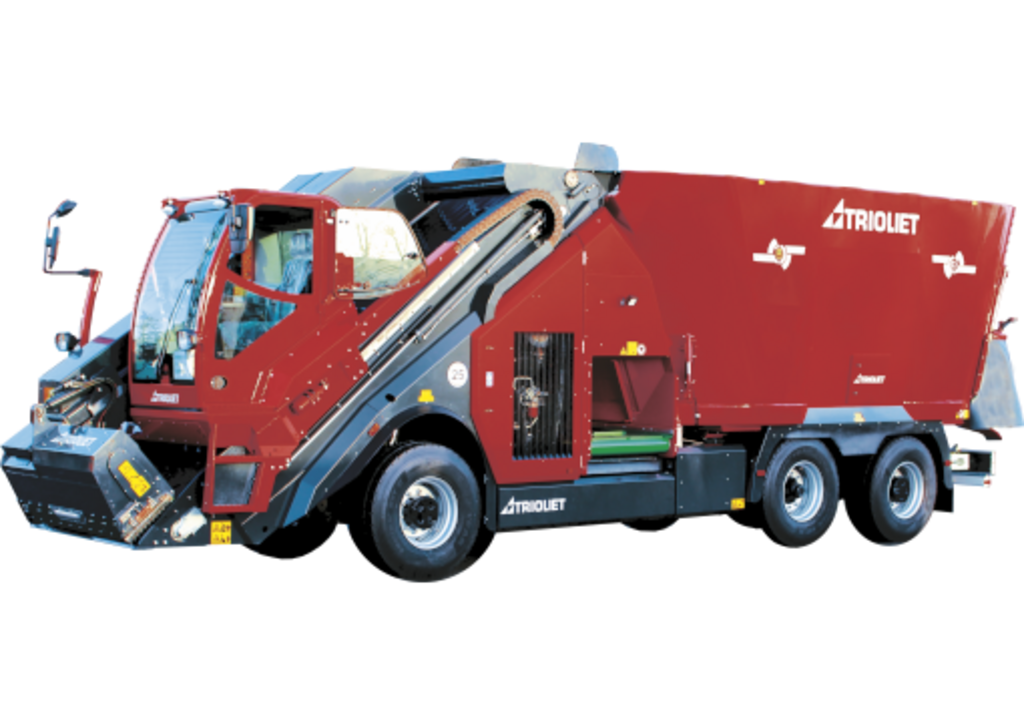

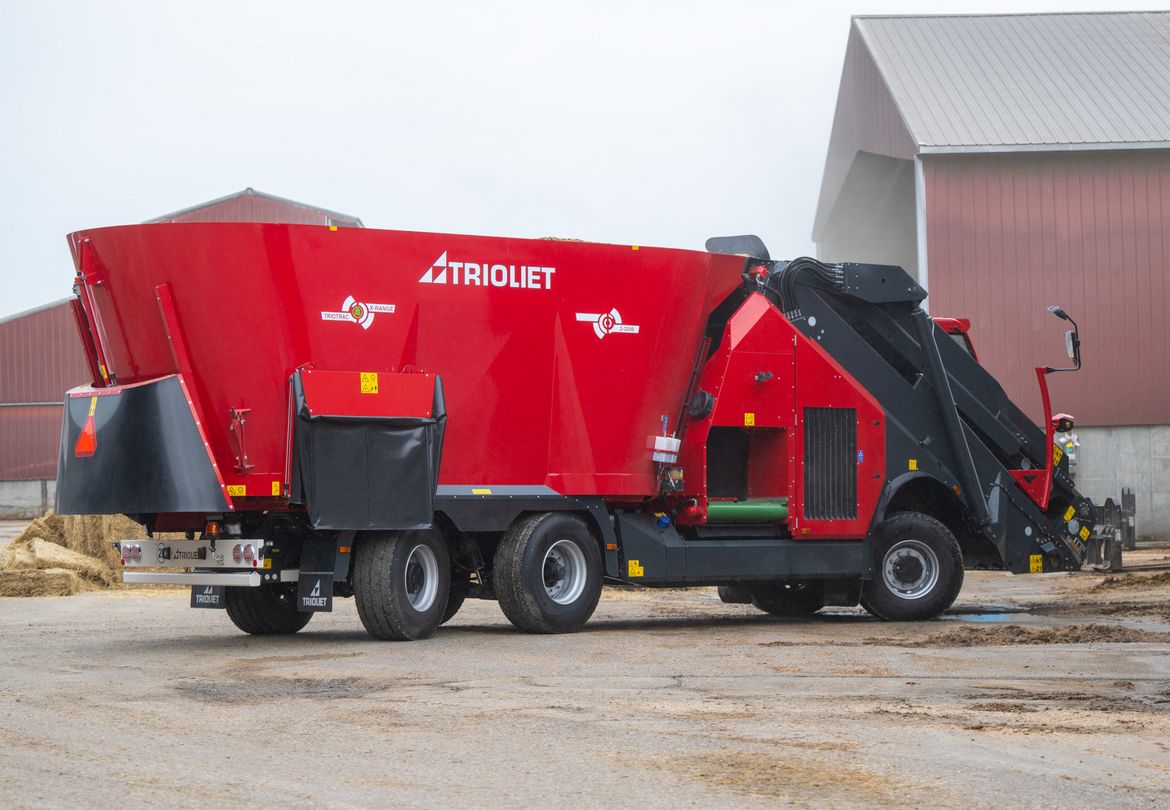

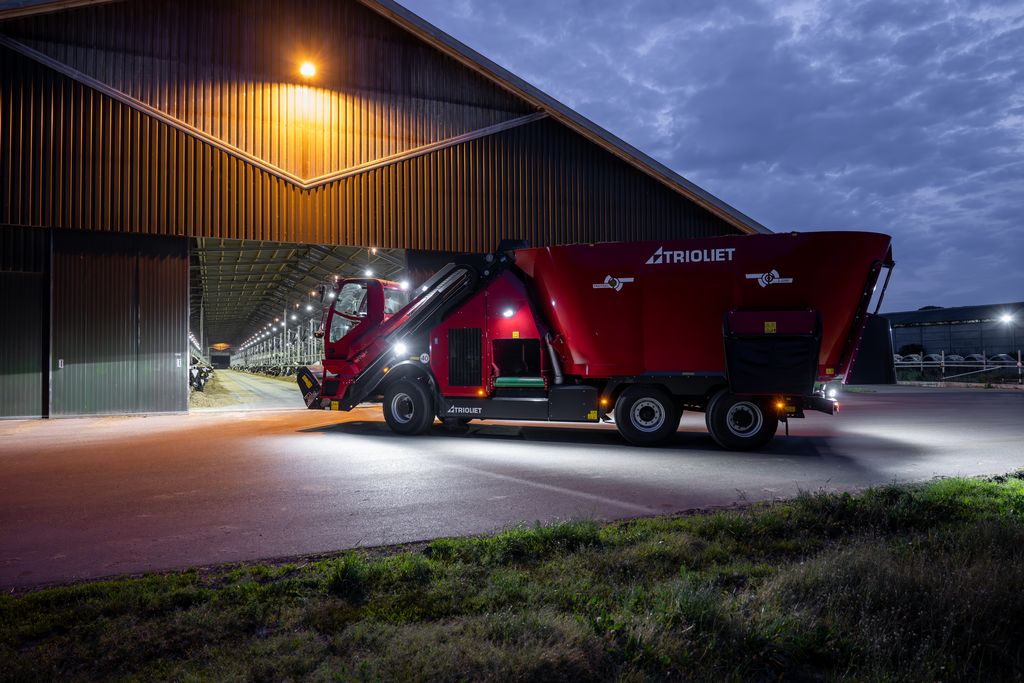

Triotrac X self propelled TMR mixer

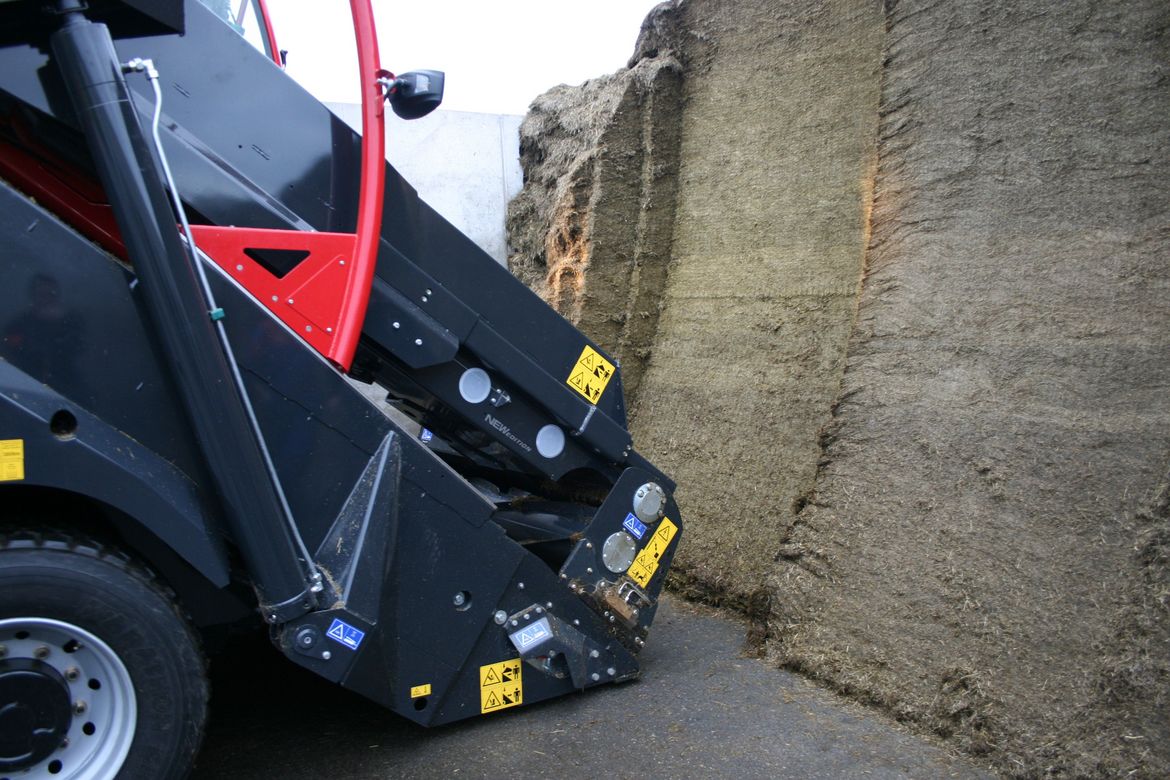

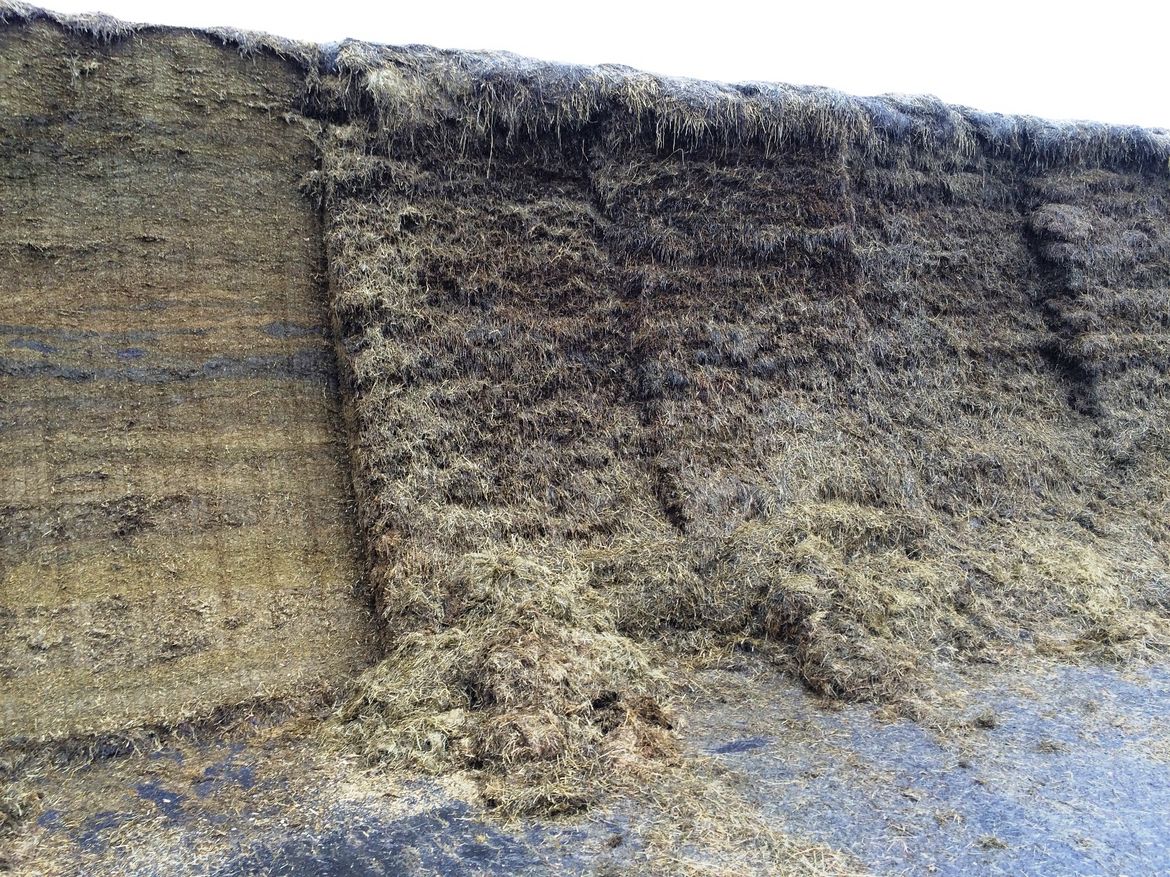

The Triotrac X is renowned for its huge capacity. It can cut and load up to 2,500 kg of grass silage per minute with silage extraction up to 27 ft (8 metres) high. The machine guarantees exceptional results day in, day out. Some of our clients use the self-propelled feeder mixer for up to ten hours a day. The Triotrac X self-propelled feed mixer is available with a discharge unit at the front or rear and in 1000 and 1,160 cu.ft. capacities. The cutting and loading system is unique and leaves the feed structure intact, which offers a sizeable (financial) advantage. Learn more about the advantages of silage extraction with the knives / cutting system.

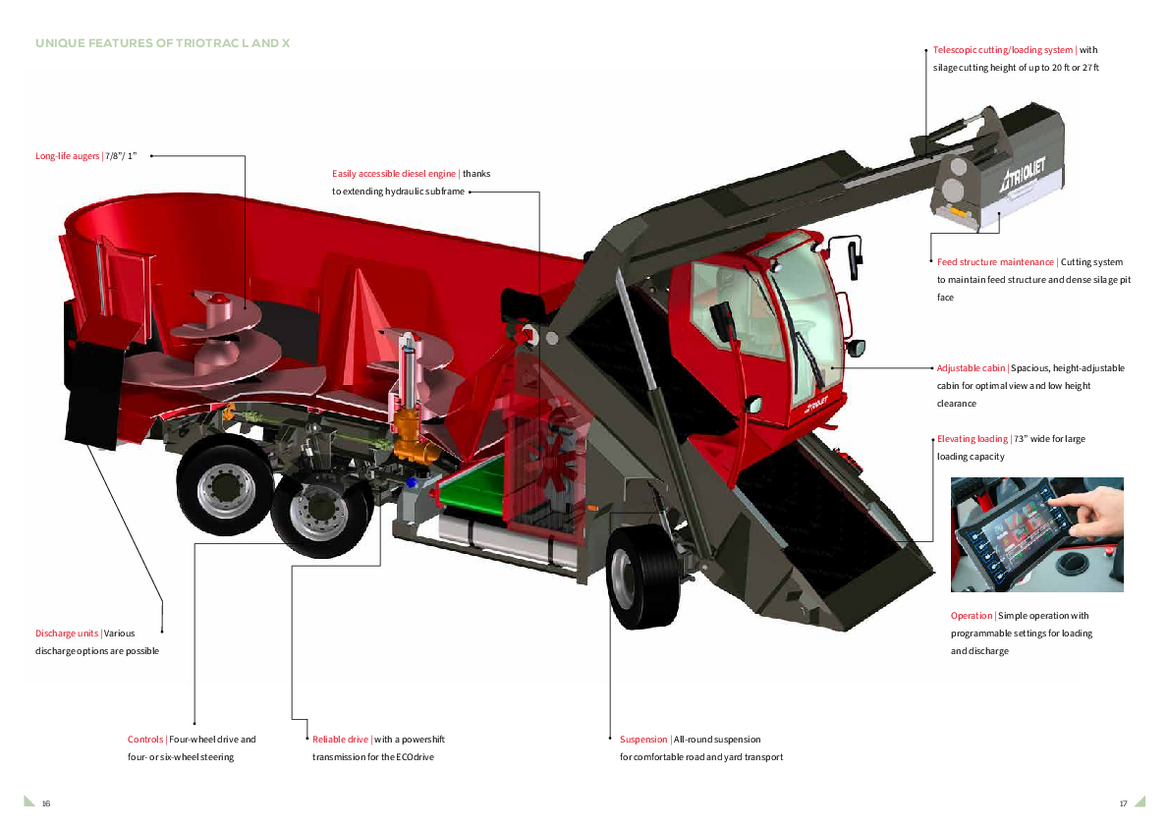

Standard features
- Optimally formed mixing chamber with two hydraulically driven vertical Twin Stream augers with variable speed
- Long Life mixing augers with 22mm flighting and 25mm wings
- 1,85m wide cutting frame (U-shape) with a transport roller

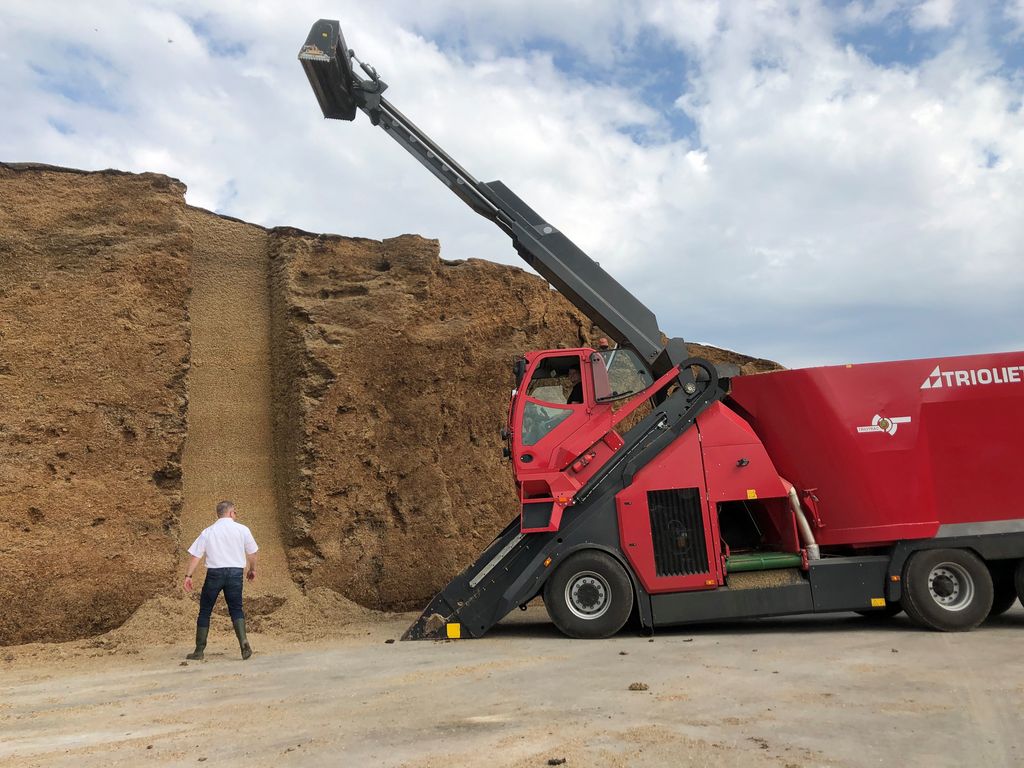

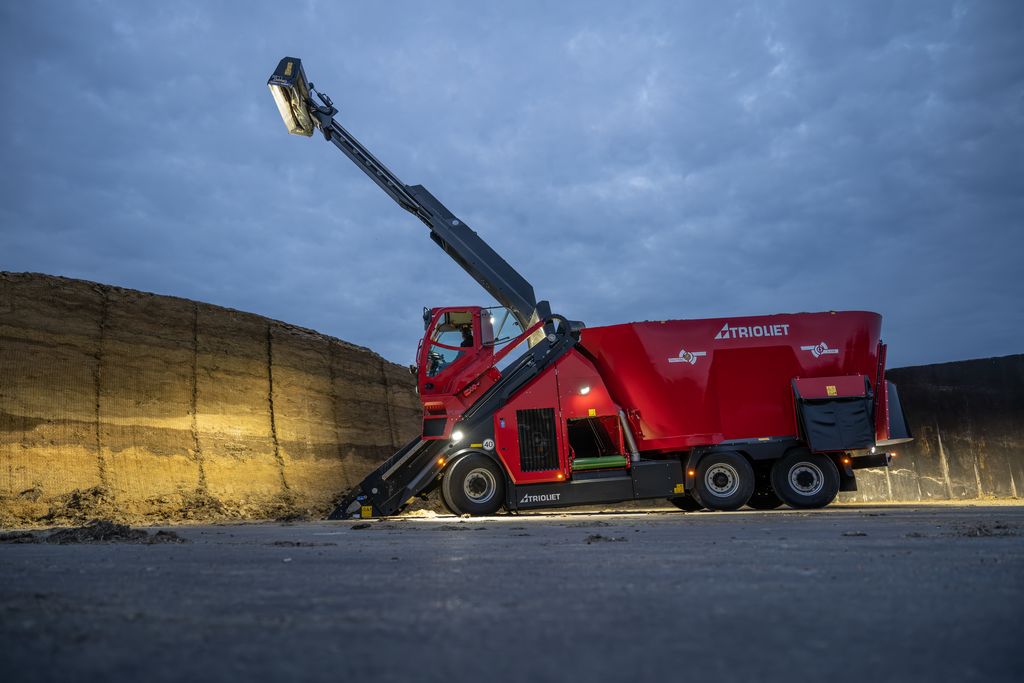

- Telescopic loading system with automatic cutting curve correction for smooth silos without undercutting
- 1,85m wide belt conveyor with variable speed regulation
- In height adjustable cab
- Hydrostatic drive with air suspensioned seat, powershift transmission for ECOdrive during transport and superior traction in farm yard mode
- Hydraulic suspension on front axle and parabola sprung suspension on rear axle
- Optional a third axle for reduced load on the ground and pavement preservation
- Four wheel drive and four wheel steering with limited slip differential in front- and rear axle
- FPT 202kW (191kW nom.) 6-cylinder Common-rail diesel engine according to stage V (SCR only (BlueDEF))
- Comfortable cab with folding sidewindow, climate control (heating and air conditioning), radio, screen wipers all around, front shield heating
- Reverse safety camera and alarm signal
- Electrically adjustable and heated mirrors
- LED work lights all around
- Trioform auger knives
- Automatic engine cooler with temperature-dependent controller and radiator cleaning system
- A cross belt conveyor for discharging in front of the mixing chamber
- A programmable weighing system with Triotronic 7600T colour touch screen indicator
- Joystick operation, programmable load- and discharge modes (to preset machinefunctions for different ingredients, rations and different stables)
- Cruise control
- Rimote service tool for over the air error read-out and software repairs by Trioliet service department
Technical specifications
| Triotrac X | 2800L | 3200 |
|---|---|---|
| Capacity cu.ft. | 1,000 | 1,150 |
| Overall length ft. | 439" | 447" |
| Overall width ft. | 109" | 110" |
| Overall height ft. | 132" | 142" |
| Silage cutting heigth max. | 236" | 315" |
| Silage cutting width | 73" | 73" |
| Silage cutting depth | 16" | 16" |
| Max. speed for yard use mph. | 12 | 12 |
| Max. speed during road transport mph. | 25 | 25 |
| Tire size (4x) | 445/65 R 22.5 | 445/65 R 22.5 |
